Spectroscopy Systems
For our CCD- linescan cameras some standard spectrographs with different gratings are available (other systems on demand).

In principle the cameras can work with all kinds of spectrographs, but it should be considered, that the spectra should be focused on a straight line. The focal line of a standard monochromator is a curve. Resultingly a measured spectra will be defocused in the sensor surface plane. The offered spectrographs have a special flat field correction for usage with linear sensors. We offer complete systems with the camera mount included. Also cooled systems for reduced dark noise are available.

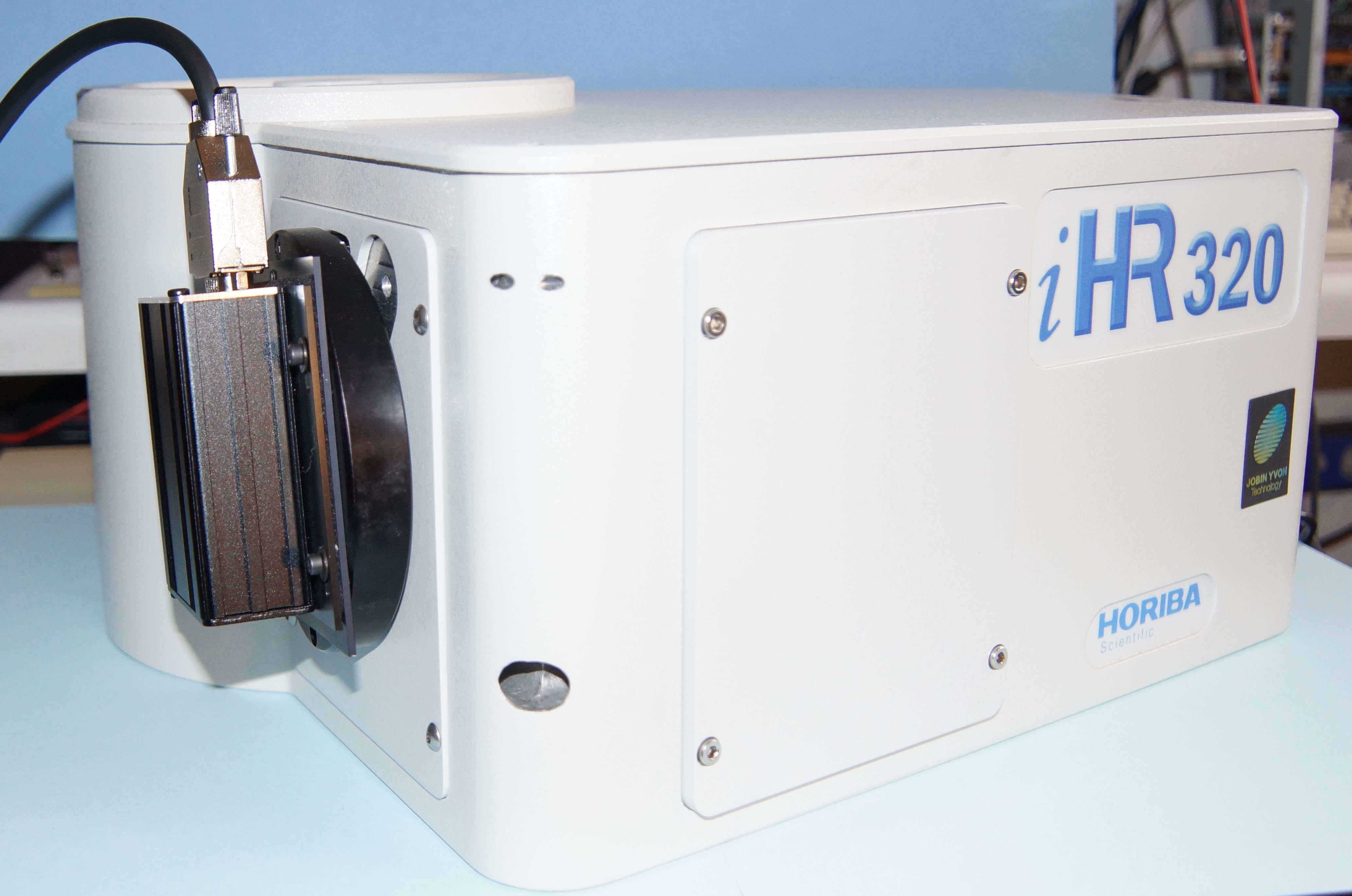

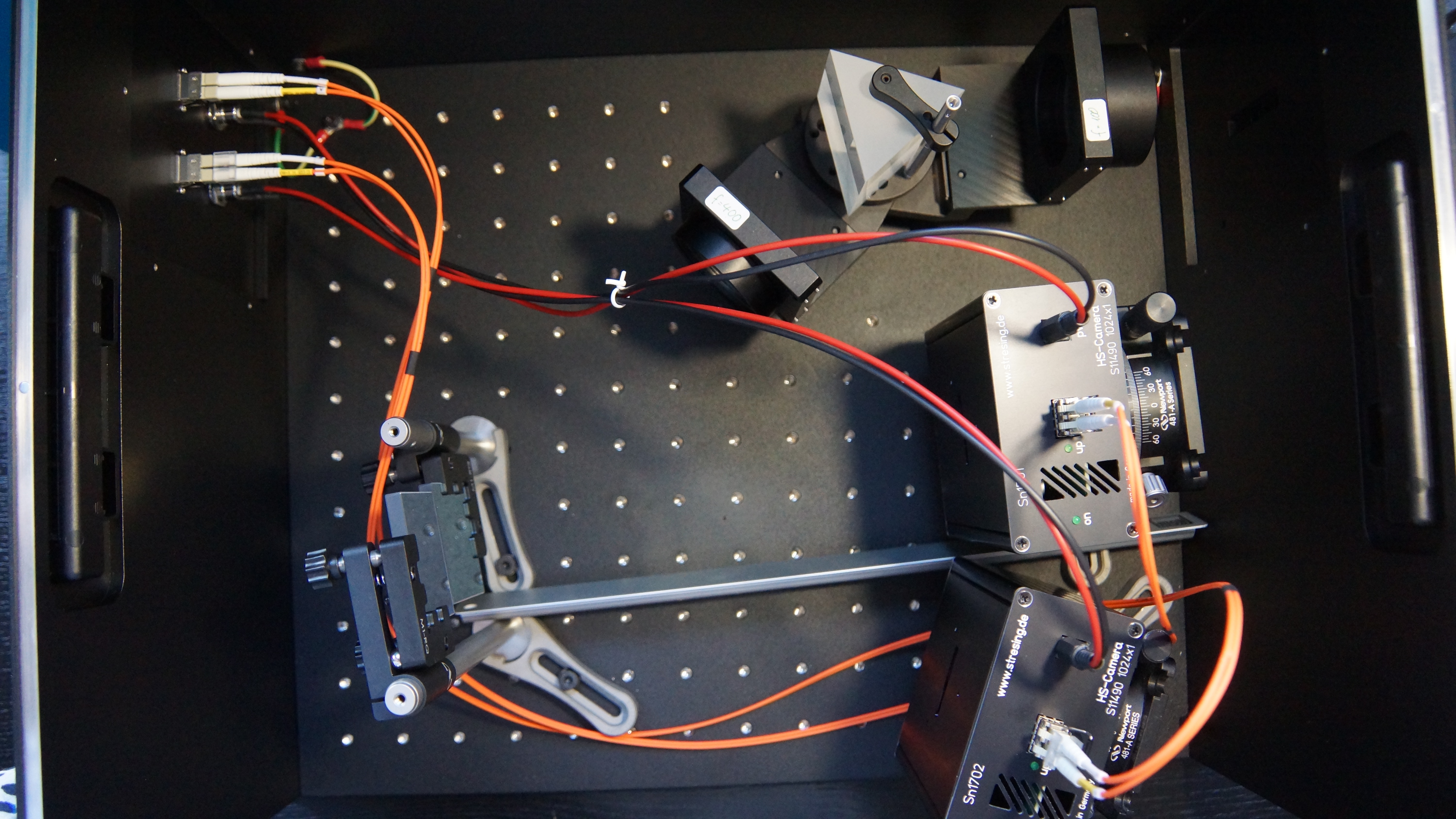

Spectroscopy 1

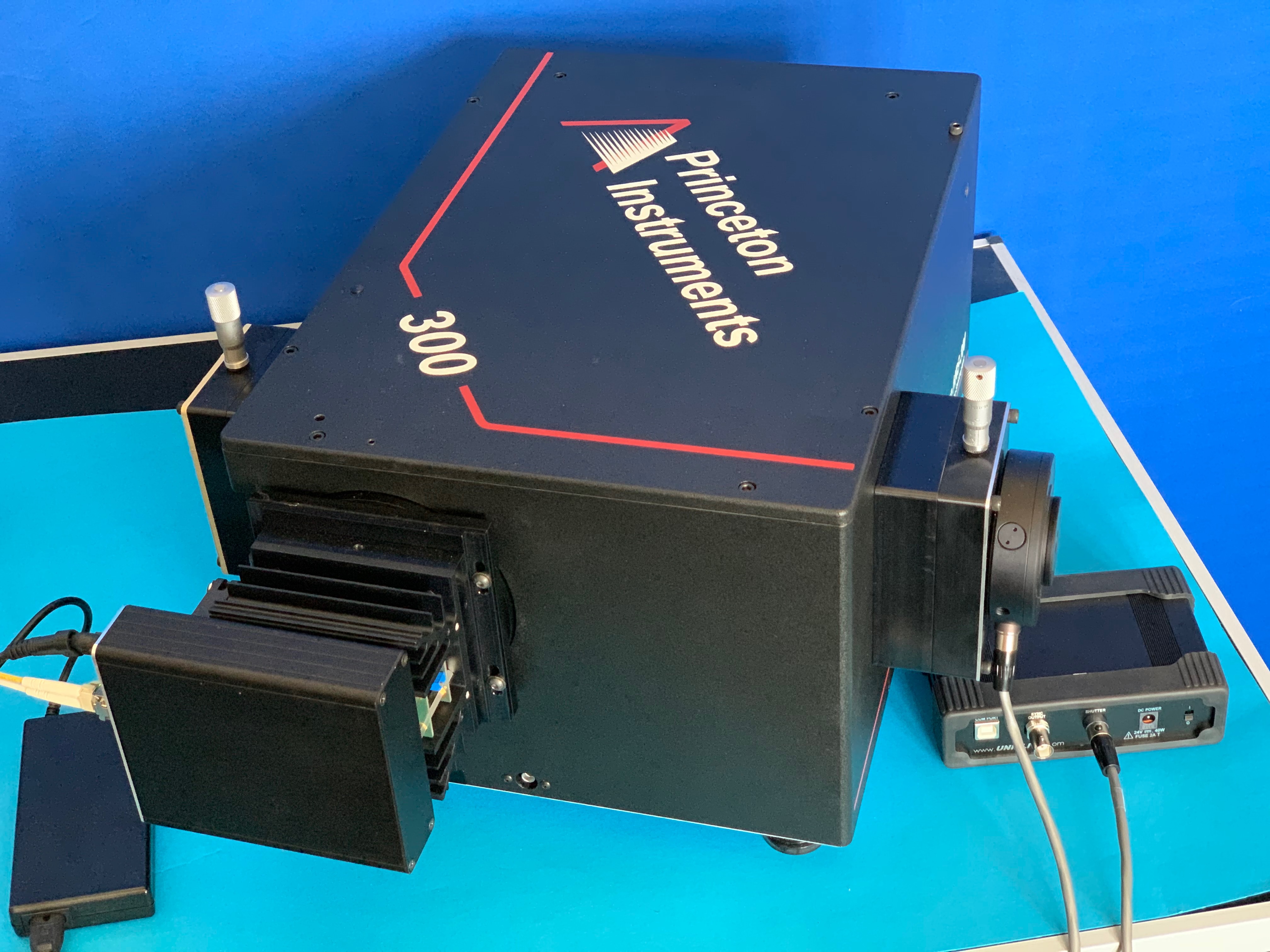

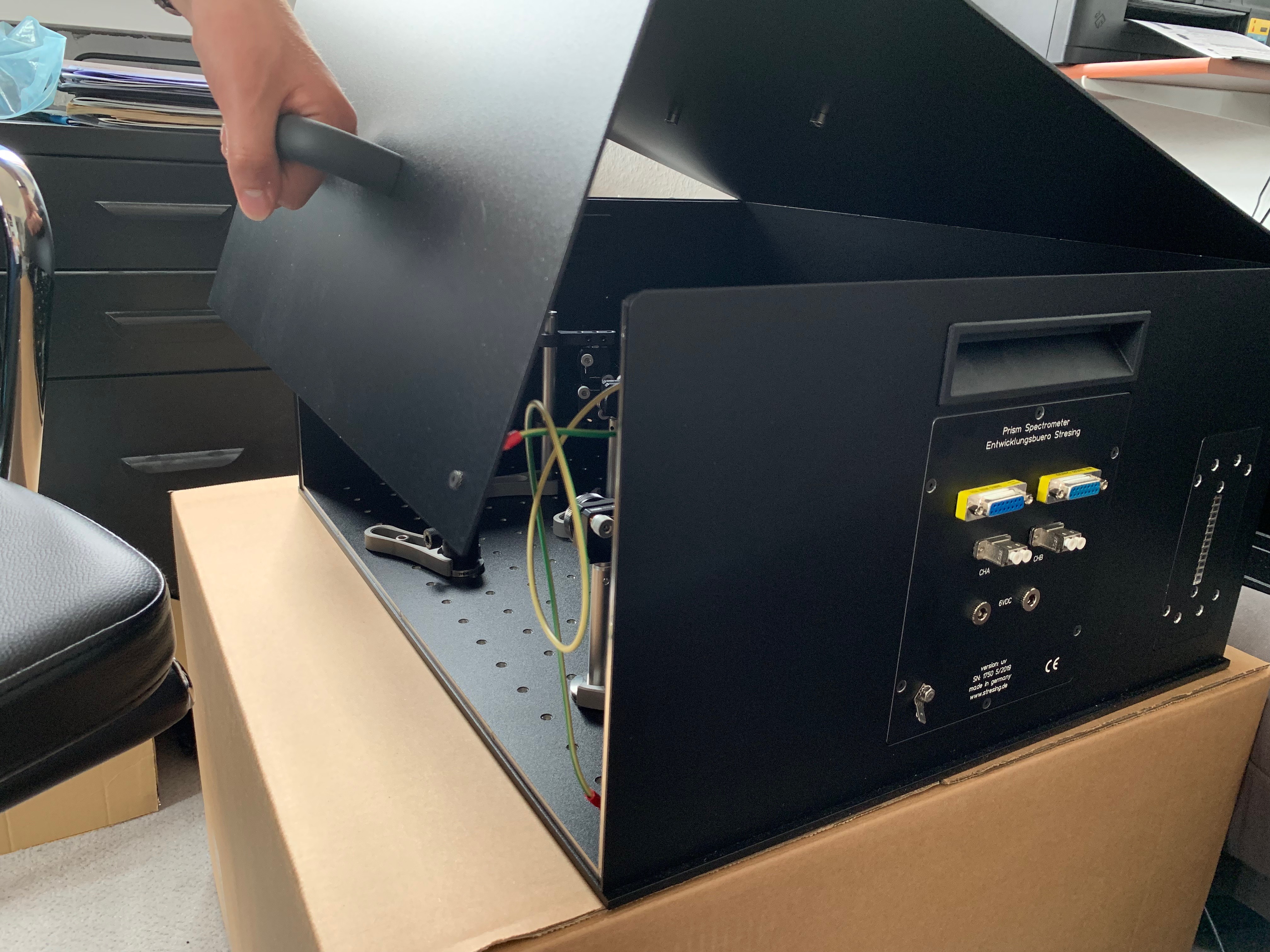

Spectroscopy 2
Spectroscopy 3
Yobin Yvon CP140 - Spectrograph
with mounted camera series 1000

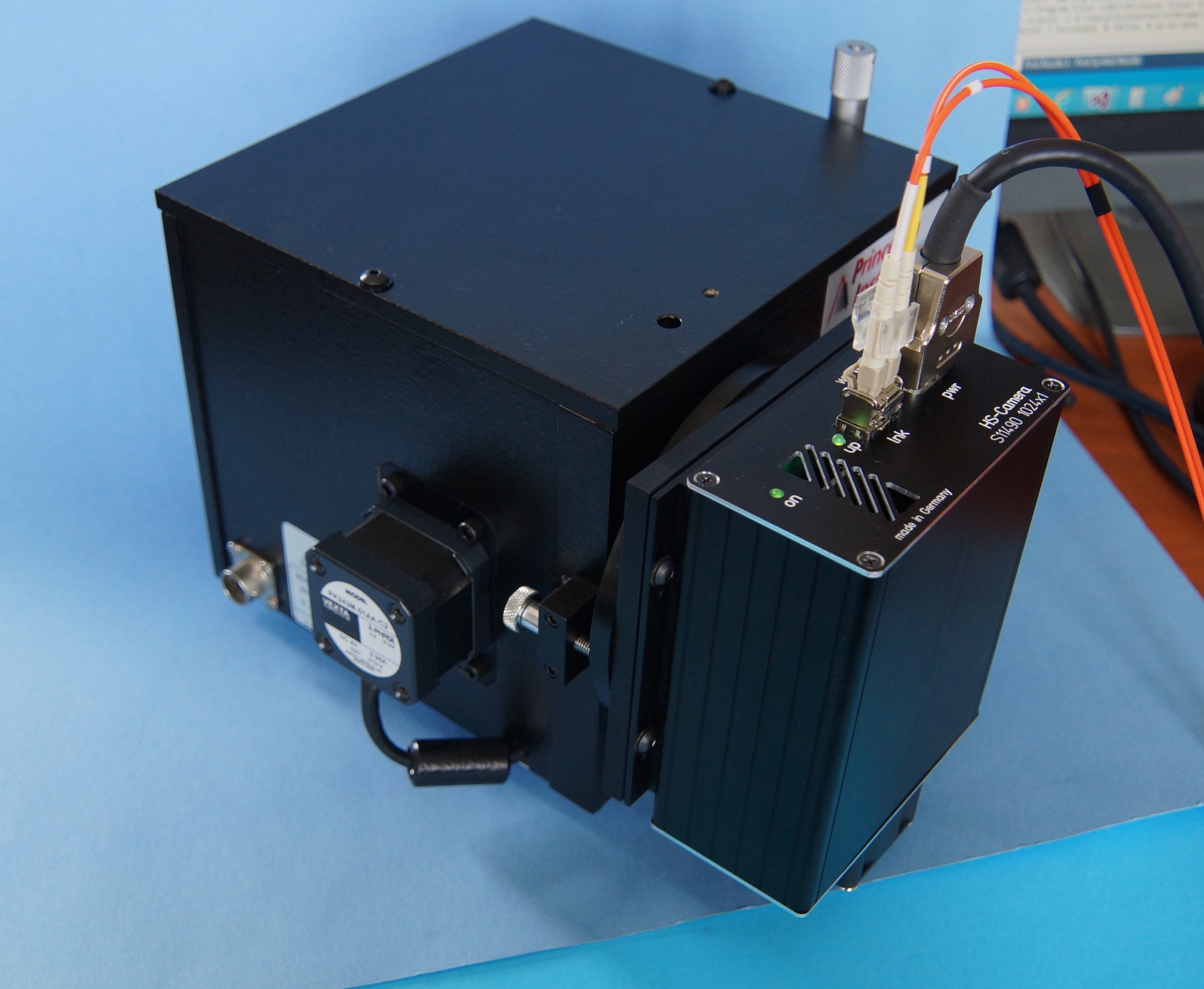

Oriel MS125 - Spectrograph
with mounted camera series 2000

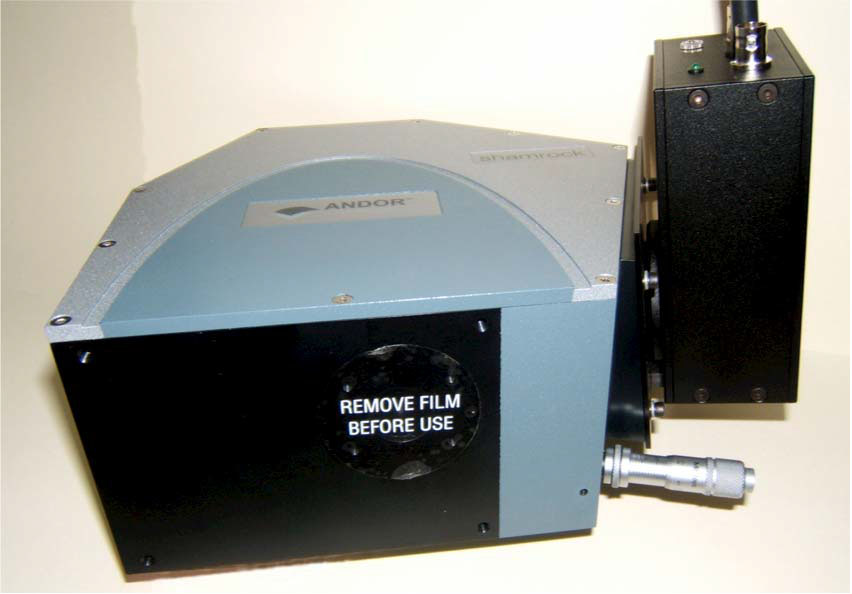

Andor SR163 - Spectrograph
with mounted camera series 2000

Broschure
Download our complete broschure:
Spectrograph systems (880KB)
Line Cameras for I/I0 rep. rate >1kHz
Download our complete broschure:
Double Line systems (470KB)

Sensors
For low cost applications the camera with the sony sensor ILX511 suits for the spectrometers very well or for high data rates the Dalsa sensor IL-C6.
Anyway the best choice for spectroscopy applications are the Hamamatsu PDA's (Photo Diode Arrays) when long exposuretimes are needed or FFT's (CCD-arrays, FFT: Full Frame Transfer) with especially large pixel sizes and increased sensitivity for low light applications.

Photo Diode Array (PDA's)
Sensor Pixel size Pitch Pixel

[µm] [µm]
S3901 45x2500 50 128/256/512
S3902 45 x 500 50 128/256/512
S3903 20 x 500 25 256/512/1024
S3904 20x2500 25 256/512/1024

Technical data
Manufacturer Hamamatsu
Max. exposuretime Approx. 50 sec .*
Resp. wavelength Approx. 0,2 - 1,1 µm
QE max (600nm) 66%
Pixelclock/linerate (1024 pixel) 2MHz / 2kHz

All sensors can be delivered for the x-ray 10 keV - 100 keV range.

Spectroscopy 5
FFT and PDA sensors
Example - spectra of a cold light lamp

The FFT's are more sensitive than the PDA's, but don't have build in shutter and antiblooming function. They can also be delivered as back side illuminated thinned versions (series S7030 and S7031) with enhanced quantum efficiency especially in the UV spectral region.

CCD-Arrays (FFT's)
'Front illuminated FFT-CCD' S7010
and S7011
'Back thinned FFT-CCD' S7030
and 7031
Sensor Act. area Pitch Pixel Sensor Act. area Pitch Pixel
S701X- [mm] [µm] h x v S703X- [mm] [µm] h x v
906 12,29 x 1,44 24 512 x 60 906 12,29 x 1,39 24 512 x 58
907 12,29 x 2,98 24 512 x 124 907 12,29 x 2,93 24 512 x 122
908 12,29 x 6,05 24 512 x 252 908 12,29 x 6,00 24 512 x 250
1006 24,58 x 1,44 24 1024 x 60 1006 24,58 x 1,39 24 1024 x 58
1007 24,58 x 2,98 24 1024 x 124 1007 24,58 x 2,93 24 1024 x 122
1008 24,58 x 6,05 24 1024 x 252 1008 24,58 x 6,00 24 1024 x 250

Technical data:
manufacturer Hamamatsu
pixel size 24 x 24 µm2
max. exposuretime Approx. 30 sec .*
resp. wavelength (front illuninated) Approx. 0,4 - 1,1 µm
resp. wavelength (back thinned) Approx. 0,2 - 1,1 µm
QE max (front illuminated / 700nm) 40%
QE max (back thinned / 650nm) 85%

Spectroscopy 6
Spectroscopy 20
"Back thinned" sensors
Comparison of spectral response 'back thinned' and front iluminated sensors

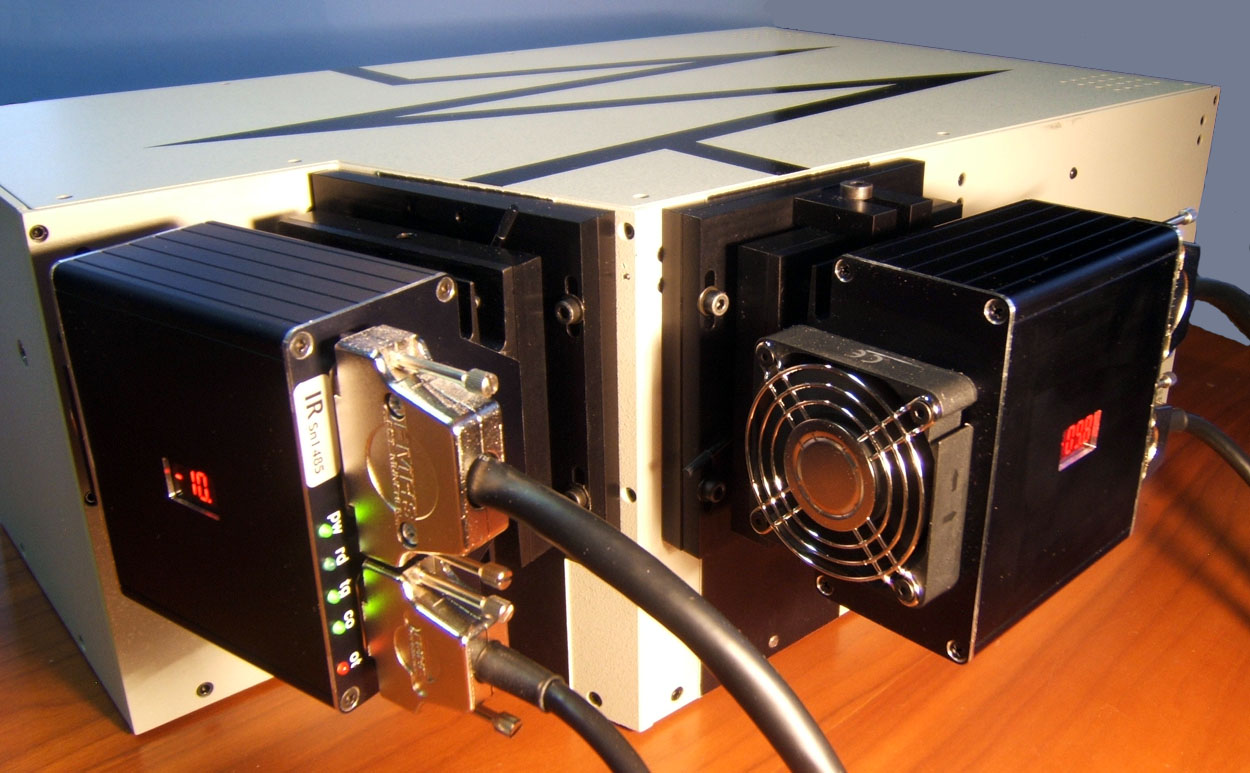

Oriel MS257 with cooled IR and FFT camera


All above mentioned 'back thinned' sensor types can be delivered as serie
7030 without cooling,
7031 with cooling down to - 20 degree Celcius,
7032 with cooling down to - 40 degree Celsius,
Sensor Typ -907 and -1007 deliverable as serie
7033 with doubled full well capacity and series
7034 doubled full well capacity and cooling to - 20 degree Celsius.

In all systems the camera can be unmounted and used for other purposes.


Low Cost "back thinned" Sensor with 2048 pixel
specials CCD-sensor for spectroskopy
"Back thinned FFT-CCD" S9840
Sensor act. area pixel size pixel
. [mm] [µm] h x v
S9840 28,672 x 0,196 14 x 14 2048 x 14

Technical data:
manufacturer Hamamatsu
pixel size 24 x 24 µm2
max. exposuretime Approx 5 sec.
Dynamic range 5000 : 1
resp. wavelength (back thinned) 200 - 1100 nm
