Headline: Overview
Additional to our camera system CCD 2000, a complete infrared linescan camera is available. A thermo electric cooled InGaAs- sensor is used, which is sensitive from 0.9 to 1.7(std) µm or from 0.9 to 2.2(ext) or 2.5 µm(eext).

IR-sensors from Hamamatsu (Ha)
IR-sensors from Goodrich Sensor Unlimited (Su)

sensor without cooling (2000):
G9211-256(std): 256 Pixel á 50x250 µm2
max. linerate: 1.6 kHz

Ha: G9212-512(std): 512 Pixel á 25 x 250 µm2
max. linerate: 0.8 kHz

Ha: G9213-256(std) : 256 Pixel á 50x500 µm2
max. linerate: 1.6 kHz

Ha: G9214-512(std): 512 Pixel á 25 x 500 µm2
max. linerate: 0.8 kHz

Ha: G11620-512(std): 512 Pixel á 25 x 500 µm2
max. linerate: 3 kHz

wide range: 0.5 to 1.7 µm
Ha: G11608-512: 512 Pixel á 25 x 500 µm2
max. linerate: 3 kHz


cooled sensor (2000CV2):
Ha: G9208-256(eext): 256 Pixel á 50 x 250 µm2
max. linerate: 1.6 kHz

Su: SU256LSB(std or ext): 256 Pixel á 50 x 500 µm2
max. linerate: 12 kHz

Su: SU512LSE(std or ext): 512 Pixel á 50 x 500 µm2
max. linerate: 6 kHz

Su: SU512LDB(std or ext): 512 Pixel á 25 x 500 µm2
max. linerate: 6 kHz

Su: SU1024LE(std or ext): 1024 Pixel á 25 x 500 µm2
max. linerate: 3 kHz

Double Line Systems available


cooled IR- area cameras
with 64x64, 320x256 or 640x512 pixel are available.
details -> see pdf

Download the PDF file
IR- cameras with pricelist (550KB)

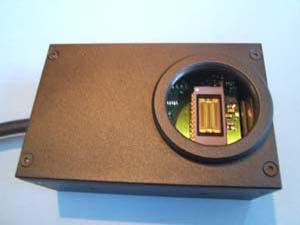

 uncooled camera series 2000

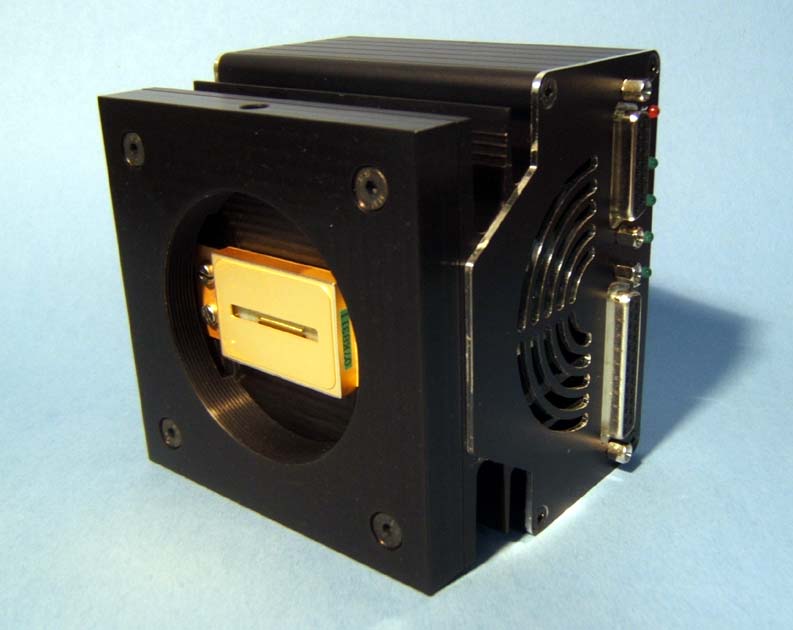

 cooled camera series 2000CV2
